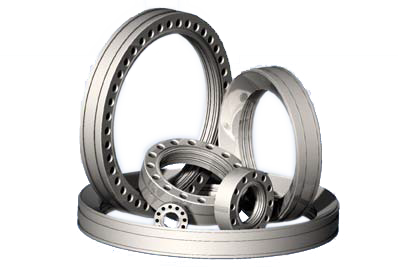

4.50″ Perimeter Weld Flange

4.50″ Perimeter Weld Flange

$308.00

4.50″CF Perimeter Weldable Tapped Flange

6 in stock



Part #: 53-630200 Categories: , ,

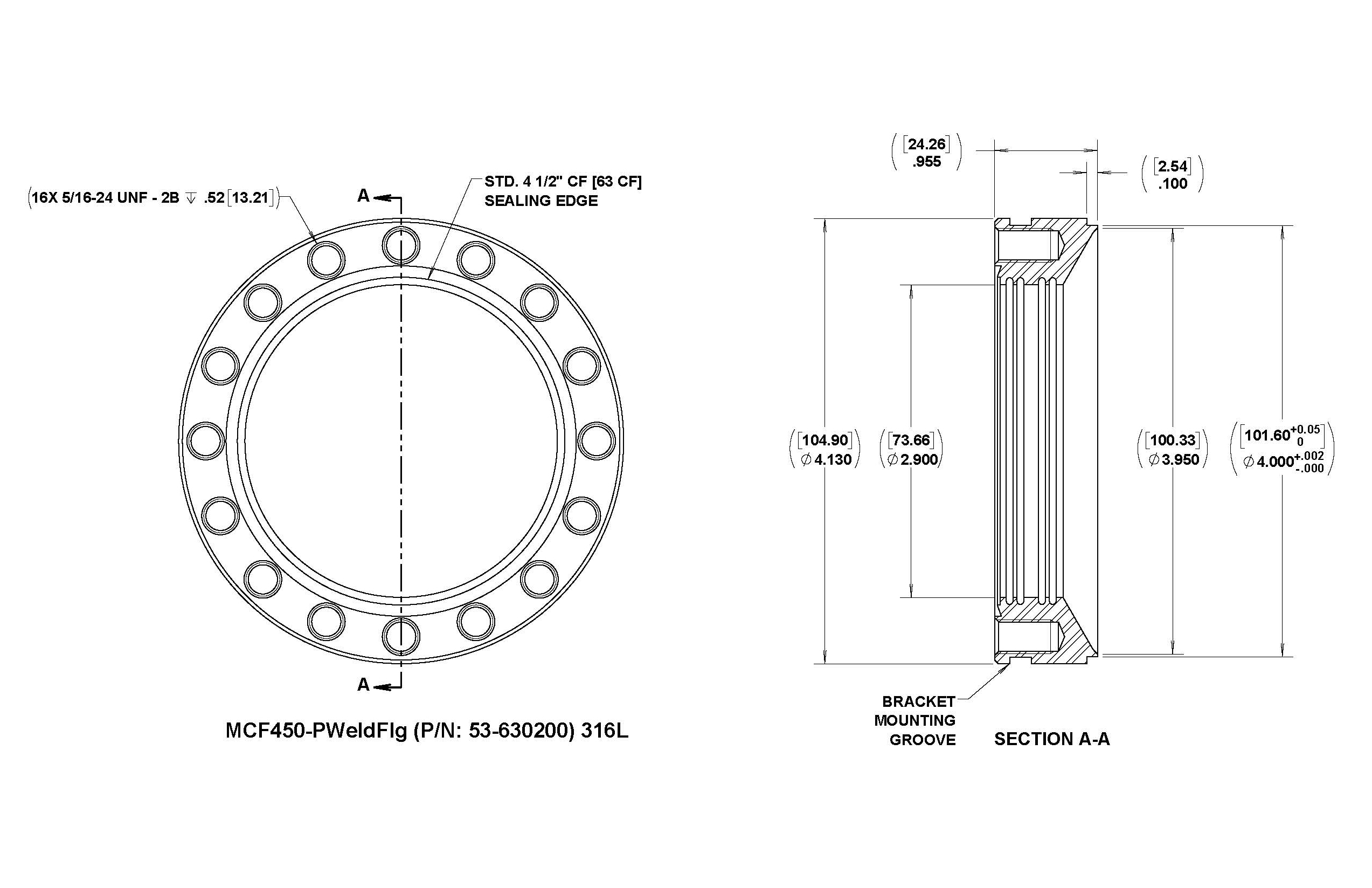

Model #: MCF450-PWeldFlg

Description

Weld into spheres, tubes, cones and other shapes
Oversize conical bores improve chamber access
Tapped holes do not require nut clearance
Has an external groove for an External Mounting Clamp
Incorporates Grabber Grooves
Weight: 1.33 lbs. (0.61 kg)

Additional information

Weight 1.334 lbs
