FRA-2X1-2 / EGPS-1011

FRA-2X1-2 / EGPS-1011

Options

Options

Insertion Length

Insertion Length

Custom Insertion Length (enter below)

Custom Insertion Length (enter below)

Cathode Type

Cathode Type

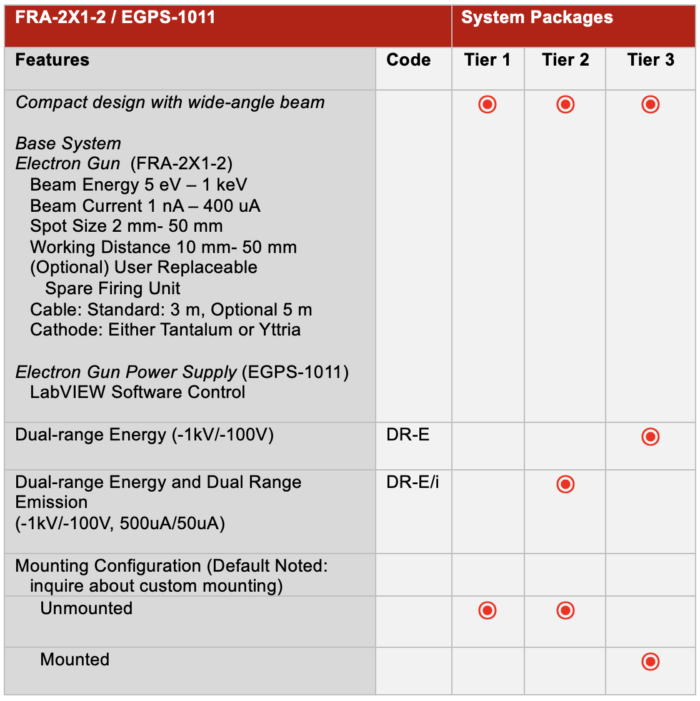

Starting price Basic System – options not included: $25,100

Compact design with wide-angle beam

Starting price Basic System – options not included: $25,100

Compact design with wide-angle beam

Categories: ,
Model #: FRA-2X1-2 EGPS-1011

Description

Wide-Angle Low-Energy Electron Beams from a Compact Source

5 eV to 1000 eV

Applications:

  • Charge Neutralization
  • Surface Physics Studies
  • Ionization Experiments
  • Surface Scrubbing

Features / Options:

  • Uniform Flood Beam
  • Compact Design (13 mm diameter x 17 mm length)
  • Variable Mounting Configurations
  • Medium Currents at Low Energies
  • Rebuildable Components
  • Pulsing Options

Energy Range: 5 eV to 1 keV
Beam Current: 1 nA to 400 µA
Spot size: 20 mm to 50 mm
Mounting: 2.75″ (2¾”) CF or unmounted
Features/Options: Flood beam, Variable Mounting Configurations, Pulsing

The Kimball Physics FRA-2X1-2 Electron Gun, with its matching EGPS-101 Power Supply, is intended for use in a variety of UHV surface physics, charge neutralization, and processing applications. It is a complete subsystem ready to attach to the user’s vacuumsystem and turn on. Both beam energy and beam current are adjustable over wide ranges.

The FRA-2X1-2 Electron Gun uses a refractory metal cathode to generate a uniform flood beam. The cathode was specifically designed for low energy spread. The gun design allows for generation of the beam down to low energies, and very low currents. The FRA-2X1-2 can produce modest beam currents at energies as low as 5 eV. It can deliver maximum beam currents of 50 μA at 5 eV, and 400 μA at 1000 eV.

The FRA-2X1-2 low-energy electron flood gun uses a planar triode design. An acceleration grid enhances beam current at low energies. Secondary electrons, which may be generated at this grid, cannot exit the electron gun because of the positive potential (0 to +100 V with respect to the cathode) applied to the grid.
