Kimball Physics UHV (Ultra-High Vacuum) Vacuum Chambers are precise, modular, multiport fittings and housings that utilize integrated ConFlatTM (CF) sealing surfaces at each port.
Kimball Physics’ Multi-CFTM UHV fittings are designed as both instrument housings and as vacuum chambers. The chambers are CNC fabricated for high precision and accuracy from a monolith of 316L Stainless Steel. Fabrication from Titanium Alloys and metric threads are also available as options.

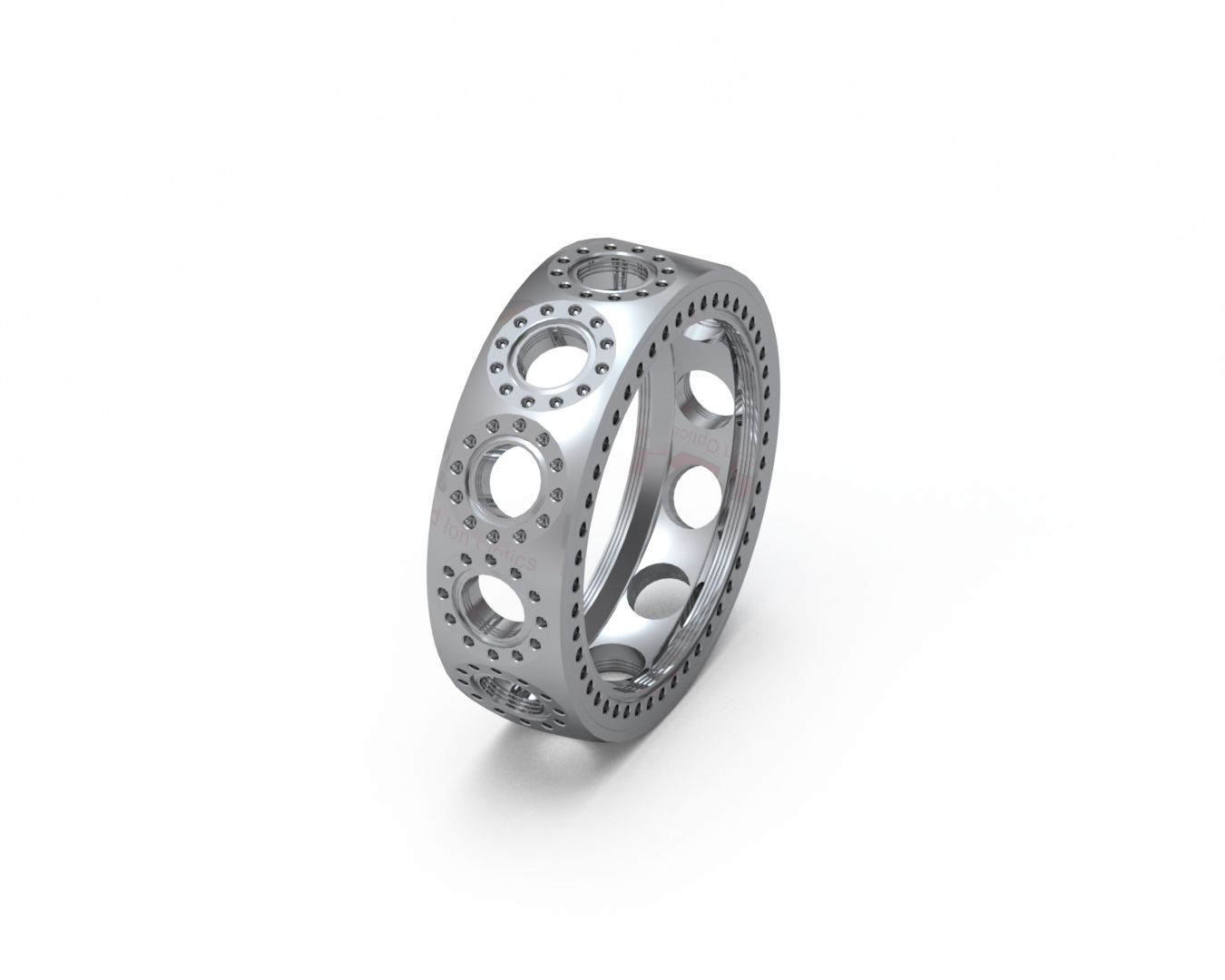

The Spherical Dodecagon Multi-CFTM UHV vacuum chamber is based on a design of two main or primary CF sealing surface ports that are parallel and offset sections cut through a global hollow spherical form. A secondary series of twelve (12) CF sealing surface ports are positioned in a plane perpendicular to the main surfaces and provides an equally spaced polygon array in the form of a dodecagon.
To LEARN MORE , please refer to the Spherical Dodecagon Overview document (PDF). To LEARN MORE about the various vacuum chamber designs, please visit our Learning Center and explore Interactive 3D Models of the various design configurations.
